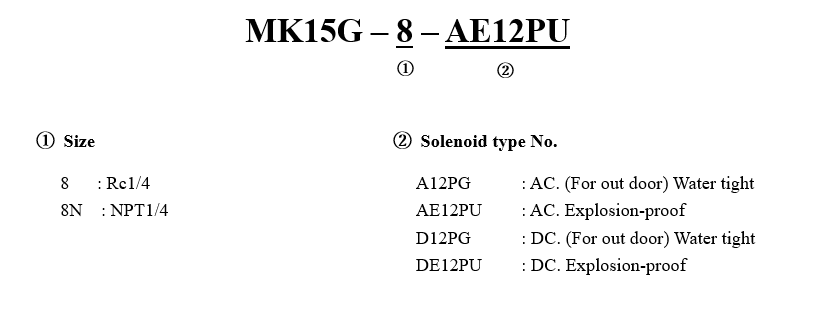

MK15G SERIES

Feature

• The main valve is of the spool type that requires no oil lubrication.

A combination of a specially configured packing and a spool enables oilless operation.

• Manual button provided as standard.

All types are provided with a manual button.

• Easy maintenance.

Long-life products. Engineered with prime importance on ease of maintenance, they are very simple in construction with smaller number of component parts.

• Also available as three-way valves.

Four-way valves as standard. They can also be used as three-way valves by plugging one of the two outlets.

• Easy to install

Troublesome piping work is unnecessary because the valve can be directly installed to a cylinder by the Namur mount method.
Moreover, the standardized connection configuration enables installation to every cylinder having a Namur mount.

• Also connectable to piping.

Connectable to piping as Rc1/4 threads are cut on the inner surface of the O-ring at the outlet side.

Standard specification

Fluid: Air , Inert Gas

Ambient Temperature: - 20 ～ + 60℃

Working Pressure: 0.12 ～ 0.99Mpa

Cv. Flow Factor: 0.9
