See more M51 SERIES
Feature
-
A kind of safety valve capable of preventing malfunctioning.
Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.
-
Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
-
Easy to operate manually.
You can just press the palm ratchet button.
We offer two types of operation and with the operation when the power during a power outage.
Standard specification
Fluid: Clean Air
Ambient Temperature: -20 ~ 60℃
Working Pressure: 0 ~ 0.99MPa
Cv. Flow Factor: 0.58

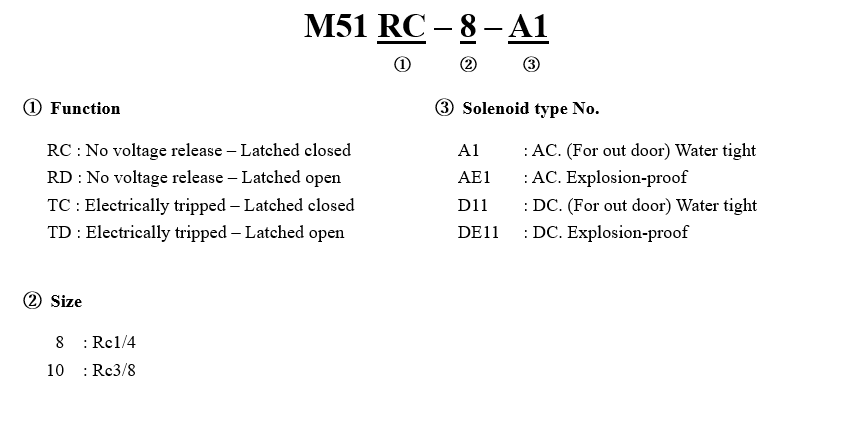

PRODUCT SELECTION DIRECTION
