See more MB15DG SERIES
Feature
-
Available at the main valve spool oil-free formula
Use oil-free is possible with a combination of special shape and spool packing.
-
Manual override as standard
For manual operation buttons are provided on all models.
-
Easy maintenance
It is the original product of long life, because it is designed with an emphasis on ease of maintenance In particular, it is extremely simple structure small number of parts.
-
Be used as a three-way valve
You can also be used as a three-way valve by plugging in either standard out is square.
Standard specification
Fluid: Clean Air
Ambient Temperature: -20℃ ~ 60℃
Working Pressure: 0.15 ~ 0.99MPa
Cv. Flow Factor: 0.5

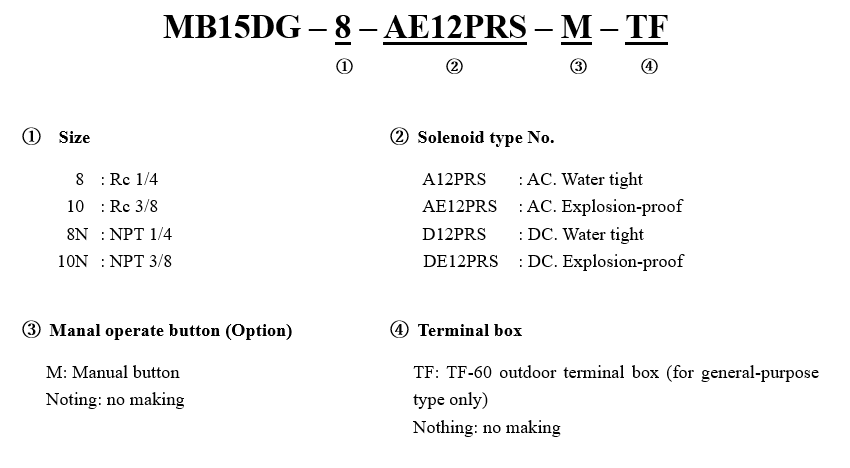

PRODUCT SELECTION DIRECTION
