See more M81 SERIES
Feature
-
A kind of safety valve capable of preventing malfunctioning.
Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.
-
Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
-
Easy to operate manually.
Can be latched with the push of the palm button. Available in two types ― no voltage release and electrically tripped.
Standard specification
Fluid: Clean Air
Ambient Temperature: -20℃ ~ 60℃
Working Pressure: 0 ~ 0.99MPa
Cv. Flow Factor: 0.58

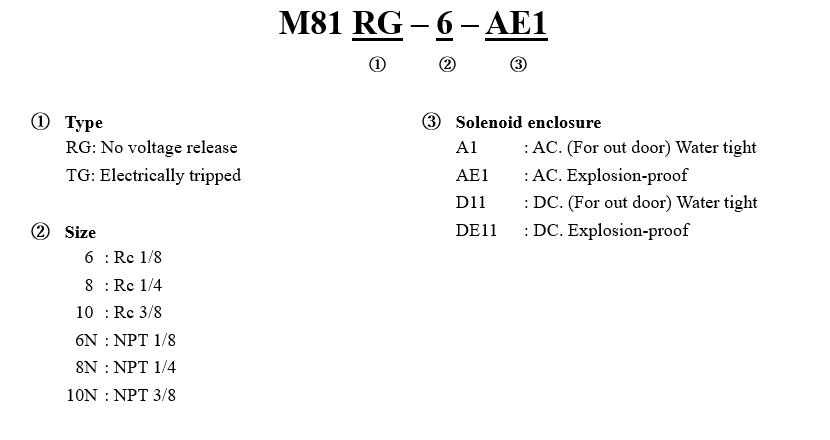

PRODUCT SELECTION DIRECTION
