See more GU SERIES
The GU-10 series can deal with a minium flow rate up to 0.5 Nm3/h and maximum flow rate up to 200Nm3/h despite the compact shape called "small gas seal".
The GU-25 series can deal with a maximum flow rate up to 1,250 Nm3/h as it called "large gas seal".
Standard specification
|
GU-10 |
Primary side : Rc3/8 |
|
GU-25 |
Primary side : 25A flange type |
|
Secondary side : Rc3/4 |
Secondary side : 50A flange type |
|||
|
Control piping : Rc1/2 |
Control piping : Rc1/2 |
Primary pressure : 0.1 ~ 0.7 MPa
* The unit does not operation normally when the primary pressure becomes less than 0.1MPa during operation.
Set pressure : 0.1 ~ 3.0 kPa

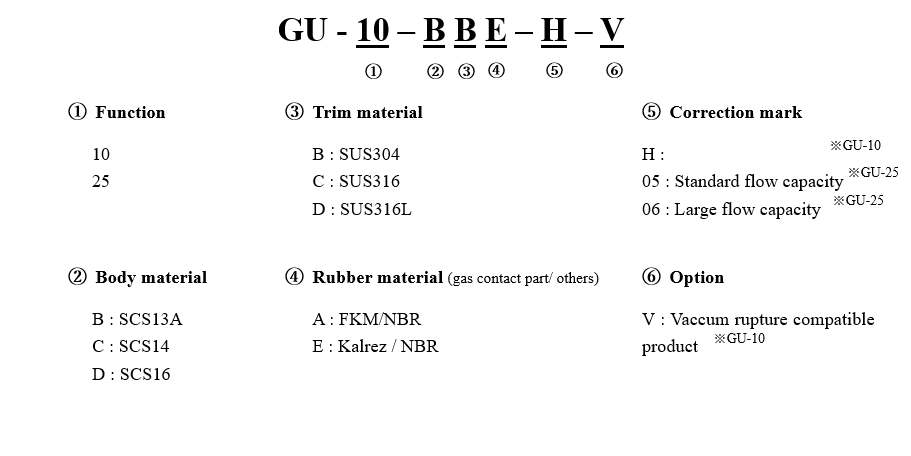

PRODUCT SELECTION DIRECTION
