See more LM SERIES
Feature
- Built as hermetically sealed, pressure-resistant containers, these level gauges can be safely used in gas/vapor explosion hazardous areas (classes I and II).
- Safe and reliable operation owing to use of magnetic force only.
- Varying liquid levels can be identified owing to red and white markings.
- Products certified for high-pressure services are also available.
- An explosion-proof type or ordinary type reed switch can be attached.
Standard specification
Working pressure : 1.96MPa
Liquid temperature : 150℃
Specific gravity of liquid : 0.7or over
Viscosity of liquid : 1.5 P or less
* Max specification
Working pressure : 24.5MPa
Liquid temperature : 420℃
Specific gravity of liquid : 0.4

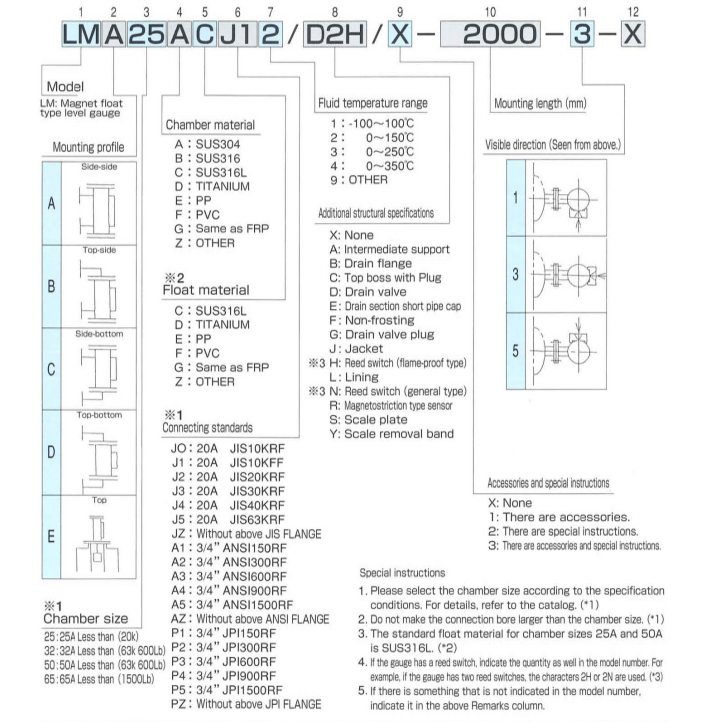

PRODUCT SELECTION DIRECTION
